关于RouterOS的光口兼容与QSFP类端口拆分

这里介绍下MikroTik 设备与 SFP、SFP+、SFP28、QSFP+、QSFP28 及 QSFP56-DD 光模块的兼容性。了解当前 MikroTik 设备支持的各类光模块。同时，通过 RouterOS 命令行界面提供了一些实用的配置示例，用于设置不同的数据传输速率。如需了解更详细的属性说明，请参考以太网用户手册。

MikroTik 设备与 SFP、SFP+、SFP28、QSFP+、QSFP28 及 QSFP56-DD 模块对第三方厂商设备无任何限制。尽管 MikroTik 无法确保与所有厂商的模块完全兼容，但只要第三方厂商的模块和设备符合光收发器多源协议（MSA），通常可以与 MikroTik 设备兼容。

RouterOS 默认将 SFP28 和 QSFP28 接口的 FEC（前向纠错）模式设置为关闭状态。为确保与其他厂商设备成功建立连接，可能需通过配置将其 FEC 模式启用，设置为 fec74 或 fec91。

速率	名称
1G	SFP
10G	SFP+/25G SFP28
40G	QSFP+
100G	QSFP28
200G	QSFP56
400G	QSFP56-DD

SFP接口与100M光模块兼容性

所列设备上的SFP接口都能兼容快速以太网光纤链路。

兼容设备（接口）：

CCR1009-7G-1C (combo1)
CCR1009-7G-1C-1S+ (combo1)
CRS106-1C-5S (combo1)
CRS328-4C-20S-4S+ (combo1 - combo4 及 SFP1 - SFP20)
LHG XL 52 ac
RBD22/D23/mANTBox 52 15s/NetMetal ac²

SFP+接口与1G光模块的兼容性

对于配备支持10G和1G链路速率的SFP+接口的MikroTik设备，必须在互连设备的对应接口上进行以下设置。这些设置仅在使用SFP光模块时适用。若需实现1G链路速率，请采用以下配置：

# RouterOS v7.12及以后版本配置
/interface ethernet set sfp-sfpplus1 auto-negotiation=no speed=1G-baseX
# RouterOS v7.12前旧版本配置
/interface ethernet set sfp-sfpplus1 auto-negotiation=no speed=1Gbps full-duplex=yes

要求禁用自动协商auto-negotiation ，端口速率 speed 1G，全双工full-duplex

支持SFP+兼容1G连接到设备包括：

CCR2004-1G-12S+2XS - All SFP+ interfaces can be used in 1G mode if required.
CCR2004-16G-2S+ - All SFP+ interfaces can be used in 1G mode if required.
CCR1072-1G-8S+ - All SFP+ interfaces can be used in 1G mode if required.
CCR1036-8G-2S+ - All SFP+ interfaces can be used in 1G mode if required.
CCR1009-8G-1S-1S+ - All SFP+ interfaces can be used in 1G mode if required.
CCR1009-7G-1C-1S+ - All SFP+ interfaces can be used in 1G mode if required.
CSS3xx series switches - All SFP+ interfaces can be used in 1G mode if required.
CRS3xx series switches - All SFP+ interfaces can be used in 1G mode if required.
RB5009 series - SFP+1 interface can be used in 1G mode if required.
RB4011 series - SFP+1 interface can be used in 1G mode if required.
CRS226-24G-2S+ - Only SFP+1 supports 1G link speed, SFP+2 is for 10G links only.
CRS210-8G-2S+ - Only SFP+1 supports 1G link speed, SFP+2 is for 10G links only.
CSS610 series switches - All SFP+ interfaces can be used in 1G mode if required.
FTC11XG - SFP+1 interface can be used in 1G mode if required.

SFP+ 接口仅适用于 10G 链路的设备：

CCR1016-12S-1S+
CRS212-1G-10S-1S+

SFP+接口与25G光模块的兼容性

当MikroTik的SFP+端口安装25G光模块建立10G链路，必须配置额外的SFP速率选择设置以避免传输过程中的数据损坏。需在SFP+接口上进行如下设置：

# RouterOS v7.12及以后版本配置
/interface ethernet
set sfp-sfpplus1 auto-negotiation=no speed=10G-baseSR-LR sfp-rate-select=low
# RouterOS v7.12前旧版本配置
/interface ethernet
set sfp-sfpplus1 auto-negotiation=no speed=10Gbps full-duplex=yes sfp-rate-select=low

SFP+/SFP28 接口与 2.5G 光模块的兼容性

2.5G 速率从 RouterOS v7.3 版本开始支持。对于支持 2.5G 链路速率的 MikroTik 设备（配备 SFP+ 和 SFP28 接口），需要在互连设备的接口上进行以下设置。

# RouterOS v7.12及以后版本配置
/interface ethernet set sfp-sfpplus1 auto-negotiation=no speed=2.5G-baseX
# RouterOS v7.12前旧版本配置
/interface ethernet set sfp-sfpplus1 auto-negotiation=no speed=2.5Gbps full-duplex=yes

支持SFP/SFP+/SFP28端口2.5G链路的设备：

CRS3xx series switches - All SFP+ interfaces can be used in 2.5G mode if required.
CCR2004-1G-12S+2XS - All SFP+ and SFP28 interfaces can be used in 2.5G mode if required.
CCR2116-12G-4S+ - All SFP+ interfaces can be used in 2.5G mode if required.
CRS5xx series - All SFP28 interfaces can be used in 2.5G mode if required.
CCR2216-1G-12XS-2XQ - All SFP28 interfaces can be used in 2.5G mode if required.
RB5009 series - SFP+ interface can be used in 2.5G mode if required.
L009 series - SFP interface can be used in 2.5G mode if required.
L23 series - SFP interface can be used in 2.5G mode if required.
CSS610 series switches - All SFP+ interfaces can be used in 2.5G mode if required.
FTC11XG - SFP+1 interface can be used in 2.5G mode if required.

QSFP+/QSFP28/QSFP56/QSFP56-DD接口支持连接速率

在RouterOS中，QSFP+、QSFP28、QSFP56及QSFP56-DD接口通过多通道技术实现高速数据传输。每个QSFP+、QSFP28或QSFP56接口均划分为四个子接口，而QSFP56-DD接口则划分为八个子接口，每个子接口对应确保设备正常运行所需的传输通道。

QSFP+、QSFP28、QSFP56及QSFP56-DD子接口的命名规则包含两部分：

"qsfpplus"、"qsfp28-"、"qsfp56-"或"qsfp56-dd-"后的第一位数字代表物理端口编号，
第二位数字（QSFP+、QSFP28、QSFP56接口为1至4，QSFP56-DD接口为1至8）则标识各个独立的传输通道。

以下是QSFP+、QSFP28、QSFP56及QSFP56-DD接口在RouterOS系统中的显示示例：

# QSFP+
/interface ethernet print
Flags: R - RUNNING
Columns: NAME, MTU, MAC-ADDRESS, ARP, SWITCH
 #   NAME            MTU  MAC-ADDRESS        ARP      SWITCH
 1   qsfpplus1-1    1500  48:8F:5A:B6:09:8C  enabled  switch1
 2   qsfpplus1-2    1500  48:8F:5A:B6:09:8D  enabled  switch1
 3   qsfpplus1-3    1500  48:8F:5A:B6:09:8E  enabled  switch1
 4   qsfpplus1-4    1500  48:8F:5A:B6:09:8F  enabled  switch1

# QSFP28
/interface ethernet print
Flags: R - RUNNING
Columns: NAME, MTU, MAC-ADDRESS, ARP, SWITCH
 #   NAME         MTU  MAC-ADDRESS        ARP      SWITCH
 1   qsfp28-1-1  1500  DC:2C:6E:9E:11:14  enabled  switch1
 2   qsfp28-1-2  1500  DC:2C:6E:9E:11:15  enabled  switch1
 3   qsfp28-1-3  1500  DC:2C:6E:9E:11:16  enabled  switch1
 4   qsfp28-1-4  1500  DC:2C:6E:9E:11:17  enabled  switch1

# QSFP56
/interface/ethernet/print
Flags: R - RUNNING; S - SLAVE
Columns: NAME, MTU, MAC-ADDRESS, ARP, SWITCH
 #   NAME            MTU  MAC-ADDRESS        ARP      SWITCH
 2   qsfp56-1-1     1500  04:F4:1C:1A:82:A1  enabled  switch1
 3   qsfp56-1-2     1500  04:F4:1C:1A:82:A2  enabled  switch1
 4   qsfp56-1-3     1500  04:F4:1C:1A:82:A3  enabled  switch1
 5   qsfp56-1-4     1500  04:F4:1C:1A:82:A4  enabled  switch1

# QSFP56-DD
/interface/ethernet/print
Flags: R - RUNNING; S - SLAVE
Columns: NAME, MTU, MAC-ADDRESS, ARP, SWITCH
 #    NAME            MTU  MAC-ADDRESS        ARP      SWITCH
 10   qsfp56-dd-1-1  1500  04:F4:1C:1A:82:91  enabled  switch1
 11   qsfp56-dd-1-2  1500  04:F4:1C:1A:82:92  enabled  switch1
 12   qsfp56-dd-1-3  1500  04:F4:1C:1A:82:93  enabled  switch1
 13   qsfp56-dd-1-4  1500  04:F4:1C:1A:82:94  enabled  switch1
 14   qsfp56-dd-1-5  1500  04:F4:1C:1A:82:95  enabled  switch1
 15   qsfp56-dd-1-6  1500  04:F4:1C:1A:82:96  enabled  switch1
 16   qsfp56-dd-1-7  1500  04:F4:1C:1A:82:97  enabled  switch1
 17   qsfp56-dd-1-8  1500  04:F4:1C:1A:82:98  enabled  switch1

这些子接口的配置与监控方式可能因自动协商、通告速率及光模块类型（如分支缆或单纤模块）等因素而异。

PS：RouterOS在QSFPxx的多通道模块与华为等产商的设置有很大区别，RouterOS是直接将多通的子接口都暴露在interace下，例如40G模块，默认qsfpplus1-1，即第一个子接口是4通道的合并端口，如果要拆分那么分别是qsfpplus1-1，qsfpplus1-2，qsfpplus1-3，qsfpplus1-4，拆分为4个10G光口端口，需要自己准备拆分光缆。而华为默认是合并端口即interface 40GE0/0/1，当要拆分为4个子接口使用“port split split-type 40GE:4*XGE”，然后重启交换机。

请注意：启用或禁用物理端口的任何子接口都将触发整个端口组的重新配置，并重启所有通道。即该端口将中断一次，但不需要重启设备。

下面是官方介绍100G端口拆分视频：

下面将介绍QSFP多通道光模块的子接口设置

说明下DAC和AOC：

DAC（直连铜缆）和AOC（有源光缆）是两种完全不同的高速电缆技术，具体区别如下：

特性	DAC (Direct Attach Copper Cable) 直连铜缆	AOC (Active Optical Cable) 有源光缆	可插拔光模块 + 光纤跳线 (Optical Transceiver)
核心介质	铜缆（高性能双绞线）	光纤（多模光纤，封装在缆线内）	光纤（独立的多模或单模光纤跳线）
传输原理	电信号传输	电-光-电转换（缆线两端有内置光电转换芯片）	电-光-电转换（光电转换功能在可插拔模块内）
组成	一体化电缆，两端接头固定。	一体化电缆，两端接头固定。	模块（如QSFP28-SR4） + 可分离的光纤跳线（如LC/LC MMF）
最大距离	很短，通常3m (10G) 到5m (400G)。适用于机架内或相邻机架。	中等，通常可达100米（多模）。适用于数据中心内跨机架、跨排连接。	极远，多模可达100-150米，单模可达10公里、40公里甚至更远。适用于楼宇间、园区内。
功耗	非常低（<1W），无激光器。	较低，通常比可插拔光模块略低。	较高，模块内部激光器和电路功耗较大。
成本	最低。	中等，通常比DAC贵，但比“模块+跳线”方案便宜。	最高。模块和高质量光纤跳线成本都高。
灵活性	差。长度和接口类型固定，无法改变。	差。长度和接口类型固定，无法改变。	极佳。可以单独更换模块（从SR4升级到LR4）或跳线，便于升级、维护和故障排查。
电磁干扰	敏感。铜缆会受EMI影响，且自身有辐射。	免疫。光纤不受EMI影响。	免疫。光纤不受EMI影响。
重量与弯曲	较重，弯曲半径受限。	轻便，弯曲半径小，易于布线和理线。	轻便，但需要注意光纤跳线的弯曲半径。
典型应用场景	机架内服务器-ToR交换机的连接，设备堆叠。	数据中心内机架间连接，需要比DAC更长距离、更轻便线缆的场景。	任何需要距离、灵活性和升级能力的场景，尤其是跨机房、楼宇间、骨干连接以及需要支持多种速率/协议时。

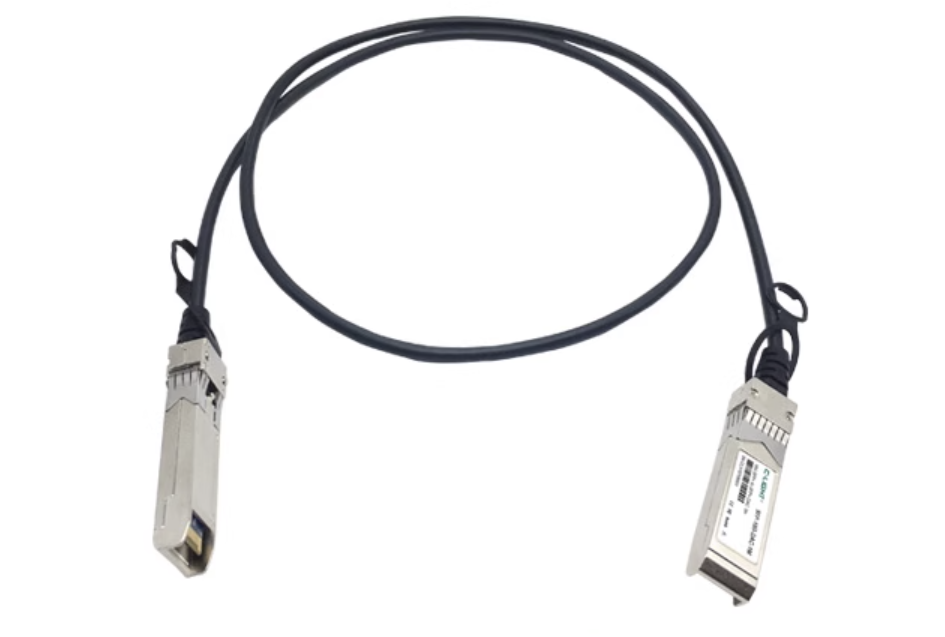

DAC图片

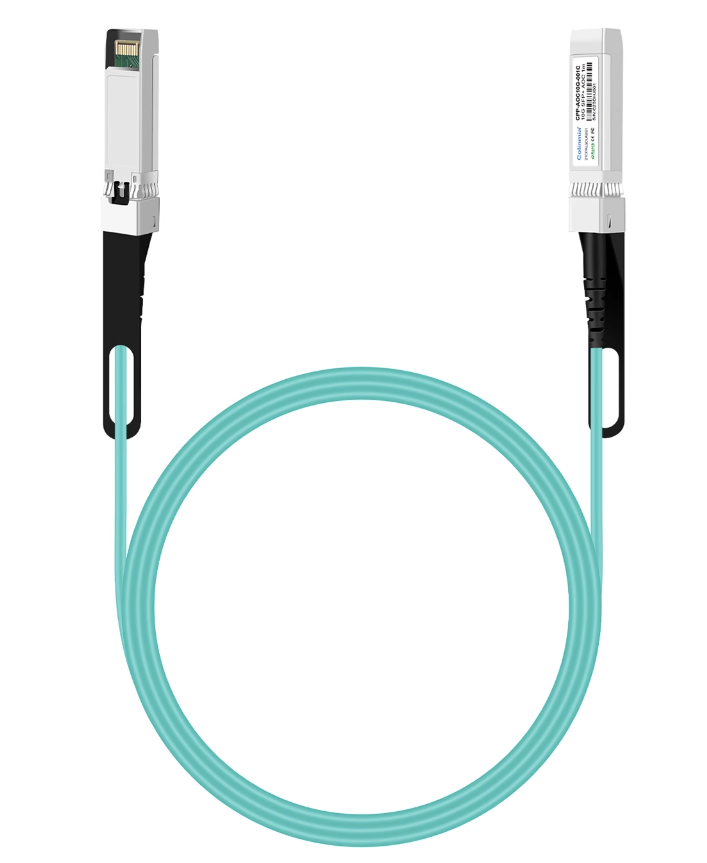

AOC图片：

QSFP+(40G)

在 MikroTik CRS3xx 系列设备中，QSFP+ 接口支持以下链路速率：

1x 40G
4x 10G
4x 1G

链路配置：

40G：可配置为自动协商或强制 40G 速率。
4x10G 和 4x1G：必须设置为强制速率模式并禁用自动协商。

从 RouterOS 7.12 版本开始，除了选择正确的传输速率外，还需指定正确的链路模式。例如，对于 DAC（直连铜缆）可能需要使用 CR4，而对于光纤则可能需要 SR4 或 LR4 模式。

RouterOS v7.12版本后的配置参数：

# 1x40G - DAC
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=40G-baseCR4

# 1x40G - 光纤模块
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=40G-baseSR4-LR4

# 4x10G - DAC
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfpplus1-2 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfpplus1-3 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfpplus1-4 auto-negotiation=no speed=10G-baseCR

# 4x10G - 光纤模块
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfpplus1-2 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfpplus1-3 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfpplus1-4 auto-negotiation=no speed=10G-baseSR-LR

在单链路模式下，只需配置第一个 QSFP+ 子接口，其余子接口应保持启用状态。

RouterOS v7.12之前的配置参数

# 1x40G - DAC/光纤模块
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=40Gbps full-duplex=yes

# 4x10G - DAC/光纤模块
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=10Gbps full-duplex=yes
/interface ethernet set qsfpplus1-2 auto-negotiation=no speed=10Gbps full-duplex=yes
/interface ethernet set qsfpplus1-3 auto-negotiation=no speed=10Gbps full-duplex=yes
/interface ethernet set qsfpplus1-4 auto-negotiation=no speed=10Gbps full-duplex=yes

QSFP28(100G)

对于 MikroTik CRS5xx 系列和 CCR2216 设备，QSFP28 接口支持以下链路速率：

1x 100G
2x 50G（自 RouterOS v7.12 起可用）
1x 40G
4x 25G
4x 10G
4x 1G

不支持：单通道 50G、2x 40G

链路配置：

100G：可配置为自动协商或强制 100G 速率。
2x50G、1x40G、4x25G、4x10G 和 4x1G：必须设置为强制速率模式并禁用自动协商。

RouterOS v7.12版本及以后的配置参数

# 1x100G - DAC
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=100G-baseCR4

# 1x100G - 光纤模块
/interface ethernet set qsfp28-2-1 auto-negotiation=no speed=100G-baseSR4-LR4

# 2x50G - DAC
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=50G-baseCR2
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=50G-baseCR2

# 2x50G - 光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=50G-baseSR2-LR2
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=50G-baseSR2-LR2

# 4x25G - DAC
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=25G-baseCR

# 4x25G - 光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=25G-baseSR-LR

在单链路模式下，只需配置第一个 QSFP28 子接口，其余子接口应保持启用状态。同样，在 2x50G 链路模式下，仅需配置主接口（例如 qsfp28-1-1 和 qsfp28-1-3），但其他子接口也必须保持启用。

RouterOS v7.12之前配置参数

# 1x100G - DAC/光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=100Gbps full-duplex=yes

# 4x25G - DAC/光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25Gbps full-duplex=yes
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25Gbps full-duplex=yes
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=25Gbps full-duplex=yes
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=25Gbps full-duplex=yes

QSFP56（200G）

对于 MikroTik CRS812 设备，QSFP56 接口支持以下链路速率：

1x 200G
2x 100G
4x 50G
1x 100G
2x 50G
1x 40G
4x 25G
4x 10G
4x 1G

链路配置：

200G：可配置为自动协商或强制 200G 速率。
2x100G、4x50G、1x100G、2x50G、1x40G、4x25G、4x10G 和 4x1G：必须设置为强制速率模式并禁用自动协商。

必须指定正确的链路模式。例如，对于 DAC（直连铜缆）可能需要使用 CR4，而对于光纤则可能需要 SR4 或 LR4 模式。

# 1x200G - DAC
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=200G-baseCR4

# 1x200G - 光纤模块
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=200G-baseSR4-LR4

# 2x100G - DAC
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=100G-baseCR2
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=100G-baseCR2

# 2x100G - 光纤模块
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=100G-baseSR2-LR2
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=100G-baseSR2-LR2

# 4x50G - DAC
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-1-2 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-1-4 auto-negotiation=no speed=50G-baseCR

# 4x50G - 光纤模块
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-1-2 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-1-4 auto-negotiation=no speed=50G-baseSR-LR

# 1x100G - DAC
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=100G-baseCR4

# 1x100G - 光纤模块
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=100G-baseSR4-LR4

# 2x50G - DAC
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=50G-baseCR2
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=50G-baseCR2

# 2x50G - 光纤模块
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=50G-baseSR2-LR2
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=50G-baseSR2-LR2

# 4x25G - DAC
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-1-2 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-1-4 auto-negotiation=no speed=25G-baseCR

# 4x25G - 光纤模块
/interface ethernet set qsfp56-1-1 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-1-2 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-1-3 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-1-4 auto-negotiation=no speed=25G-baseSR-LR

QSFP56-DD(400G)

对于 MikroTik CRS812 设备，QSFP56-DD 接口支持以下链路速率：

1x 400G
2x 200G
4x 100G
8x 50G
8x 25G
2x 40G
8x 10G
8x 1G

链路配置：

400G：可配置为自动协商或强制 400G 速率。
2x200G、4x100G、8x50G、8x25G、2x40G、8x10G 和 8x1G：必须设置为强制速率模式并禁用自动协商。

必须指定正确的链路模式。例如，对于 DAC（直连铜缆）可能需要使用 CR8，而对于光纤则可能需要 SR8 或 LR8 模式。

# 1x400G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=400G-baseCR8

# 1x400G - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=400G-baseSR8-LR8

# 2x200G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=200G-baseCR4
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=200G-baseCR4

# 2x200G - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=200G-baseSR4-LR4
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=200G-baseSR4-LR4

# 4x100G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=100G-baseCR2
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=100G-baseCR2
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=100G-baseCR2
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=100G-baseCR2

# 4x100G - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=100G-baseSR2-LR2
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=100G-baseSR2-LR2
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=100G-baseSR2-LR2
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=100G-baseSR2-LR2

# 8x50G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-2 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-4 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-6 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=50G-baseCR
/interface ethernet set qsfp56-dd-1-8 auto-negotiation=no speed=50G-baseCR

# 8x50G - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-2 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-4 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-6 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=50G-baseSR-LR
/interface ethernet set qsfp56-dd-1-8 auto-negotiation=no speed=50G-baseSR-LR

# 8x25G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-2 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-4 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-6 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp56-dd-1-8 auto-negotiation=no speed=25G-baseCR

# 8x25G - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-2 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-4 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-6 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp56-dd-1-8 auto-negotiation=no speed=25G-baseSR-LR

# 2x40G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=40G-baseCR4
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=40G-baseCR4

# 2x40G  - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=40G-baseSR4-LR4
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=40G-baseSR4-LR4

# 8x10G - DAC
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-2 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-4 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-6 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp56-dd-1-8 auto-negotiation=no speed=10G-baseCR

# 8x10G - 光纤模块
/interface ethernet set qsfp56-dd-1-1 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-2 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-3 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-4 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-5 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-6 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-7 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp56-dd-1-8 auto-negotiation=no speed=10G-baseSR-LR

QSFP+/QSFP28 接口与分支电缆的兼容性

MikroTik 设备可以通过分支电缆在 QSFP+/QSFP28 端口与 SFP+/SFP28 端口之间建立链路连接。

# QSFP+ - DAC
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfpplus1-2 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfpplus1-3 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfpplus1-4 auto-negotiation=no speed=10G-baseCR

# QSFP+ - 光纤模块
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfpplus1-2 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfpplus1-3 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfpplus1-4 auto-negotiation=no speed=10G-baseSR-LR

# QSFP28 - DAC
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=25G-baseCR

# QSFP28 - 光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=25G-baseSR-LR
同样能将QSFP28拆分为 2x50G QSFP28线缆
# 2x50G - DAC
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=50G-baseCR2
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=50G-baseCR2

# 2x50G - 光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=50G-baseSR2-LR2
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=50G-baseSR2-LR2

或者，为每个 QSFP+/QSFP28 子接口配置不同的速率：

# QSFP28 - DAC
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25G-baseCR
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=10G-baseCR
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=10G-baseCR

# QSFP28 - Optical
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25G-baseSR-LR
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=10G-baseSR-LR
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=10G-baseSR-LR

RouterOS v7.12更早的版本配置：

# QSFP+ - DAC/光纤模块
/interface ethernet set qsfpplus1-1 auto-negotiation=no speed=10Gbps full-duplex=yes
/interface ethernet set qsfpplus1-2 auto-negotiation=no speed=10Gbps full-duplex=yes
/interface ethernet set qsfpplus1-3 auto-negotiation=no speed=10Gbps full-duplex=yes
/interface ethernet set qsfpplus1-4 auto-negotiation=no speed=10Gbps full-duplex=yes

# QSFP28 - DAC/光纤模块
/interface ethernet set qsfp28-1-1 auto-negotiation=no speed=25Gbps full-duplex=yes
/interface ethernet set qsfp28-1-2 auto-negotiation=no speed=25Gbps full-duplex=yes
/interface ethernet set qsfp28-1-3 auto-negotiation=no speed=25Gbps full-duplex=yes
/interface ethernet set qsfp28-1-4 auto-negotiation=no speed=25Gbps full-duplex=yes

关于RouterOS的光口兼容与QSFP类端口拆分

SFP接口与100M光模块兼容性

SFP+接口与1G光模块的兼容性

SFP+接口与25G光模块的兼容性

SFP+/SFP28 接口与 2.5G 光模块的兼容性

QSFP+/QSFP28/QSFP56/QSFP56-DD接口支持连接速率

QSFP+(40G)

QSFP28(100G)

QSFP56（200G）

QSFP56-DD(400G)

QSFP+/QSFP28 接口与分支电缆的兼容性

打赏支持
